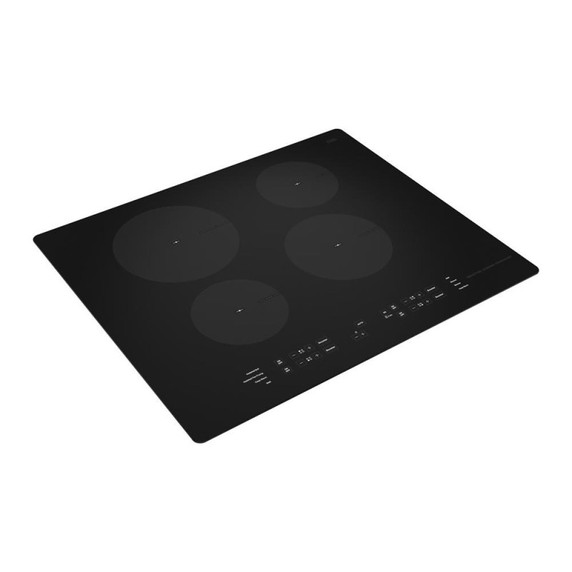

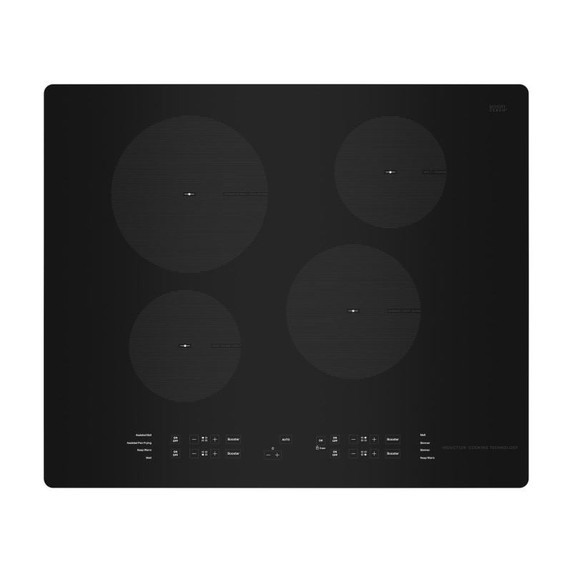

24-Inch Small Space Induction Cooktop UCIG245KBL
KitchenAid Buy More, Save More - April 2023, March 30 – May 31, 2023. Save an additional $600 when you purchase 3, save $800 when you purchase 4 and save $1200 when you purchase 5 or more qualifying KitchenAid appliances.
Fast BoilBoil 12 cups of water on average 25% faster on Booster to help you get dinner to the table in less time.
Quick CleanupInduction technology keeps the cooktop surrounding the elements cool, helping prevent baked-on messes. With fewer messes, you can clean the touch-activated controls on the cooktop as easily as you use them.
Assisted BoilThis optional assisted cooking function notifies you with a helpful tone and flashing light when boiling water reaches the right temperature to add food—so you can keep dinner prep moving and get dinner to the table fast. Requires an accessory pot, part number W11463464, sold separately.
Assisted Pan FryingThis optional assisted cooking function notifies you with a helpful tone and flashing light when oil reaches the right temperature to add food—so you can keep dinner prep moving and get dinner to the table fast. Requires an accessory pan, part number W11463466, sold separately.
Keep WarmLow heat keeps food ready to serve when other dishes aren’t quite done, saving you time spent heating up food that’s gotten cold.
Compatible CutoutInstall your new induction cooktop into the same size cutout as our electric cooktops, making the switch nearly effortless.
Control Lock ModeDisable the control panel to avoid unintended use and make cleanup easy.
Small Space SolutionCook in multiple pans on a cooktop that packs in four elements without taking up your valuable counter space.
MeltPrevent burning delicate foods like chocolate or butter with a Melt setting that lets you focus on other tasks.
SimmerMaintain the right temperature for simmering soups and stews so you can let dishes cook while taking on the next step in meal prep.
Optional Flush InstallationChoose Optional Flush Installation for a flush fit and seamless look. With flush installation the cooktop is placed into the countertop, rather than on top of the countertop for a more built-in appearance.
Pan DetectionEasily see which element is activated with Pan Detection. A flashing symbol alerts you when a pan is removed or replaced on an active element.
30 Amp InstallationProperly install with a 30 amp hookup.
Kitchen TimerKeep track of cook times with an easy-to-clean Kitchen Timer that’s integrated into the controls.
Wall Oven CompatibleInstall this cooktop on a countertop above a Whirlpool® Wall Oven or on its own for more flexibility.
ADA CompliantThis cooktop meets the Standards for Accessible Design specified by the Americans with Disabilities Act to provide equal access to all.
Certifications
Prop 65Standard
ULYes
ADA CompliantADA Height and Operation Compliant
Controls
Control LocationFront
Control TypeTap Touch
Infinite Heat ControlsNo
Electrical
Hz60
Volts240
Power Cord IncludedYes
208V CompatibleYes
Amps30
Watts7920
Cooktop Details
Number of Cooking Element-Burners4
Cooktop Surface ColorBlack
Cooktop Element StyleInduction
Cooktop ConfigurationAll Burners
Number of Open BaysNA
Ignition TypeElectronic Button
Left Front Element-Burner TypeRound
Left Rear Element-Burner TypeRound
Right Front Element-Burner TypeRound
Right Rear Element-Burner TypeRound
Left Front Element-Burner Power1200W/1600W Boost
Left Rear Element-Burner Power2100W/ 3000W Boost
Right Front Element-Burner Power1800W/ 2100W Boost
Right Rear Element-Burner Power1200W/ 1600W Boost
Left Front Element-Burner Size6in.
Right Rear Element-Burner Size6in.
Left Rear Element-Burner Size8in.
Right Front Element-Burner Size7in.
EndecaProps
ProductOutletCategoriesCooking
Refinement
StyleCooktops
Features
GriddleNA
Power Outage CompatibleNo
Downdraft VentNo
Heating Element On Indicator LightYes
Installs Over Built-In OvenYes
Hot Surface Indicator LightYes
Automatic Pan DetectionYes
Digital DisplayYes
LP ConvertibleNo
Power BoostYes
Automatic Pan Size AdjustmentYes
Misc.
Accessory RelationshipsYes
Description
Cooktop TypeStandard
Fuel TypeElectric Induction
Size (in.)24
Combinations with OvenJJW2424,JJW6024H,KOSC104FSS,WOS31ES0,WOS31ES7,WOS51EC0,WOS51EC7,WOS52EM4,WOS72EC0,WOS72EC7,WOS92EC0,WOS97EC0,WOSA2EC0
Details
Cooktop Surface MaterialGlass
Carton Depth25 5/16"
Carton Height7 11/16"
Carton Width29"

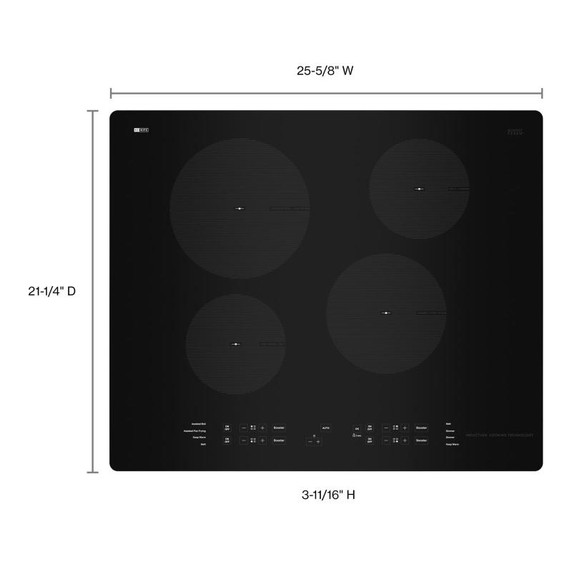

Depth21 1/4"
Height3 11/16"
Width25 5/8"
Gross Weight43 Kg.
Net Weight32.0 Kg.
