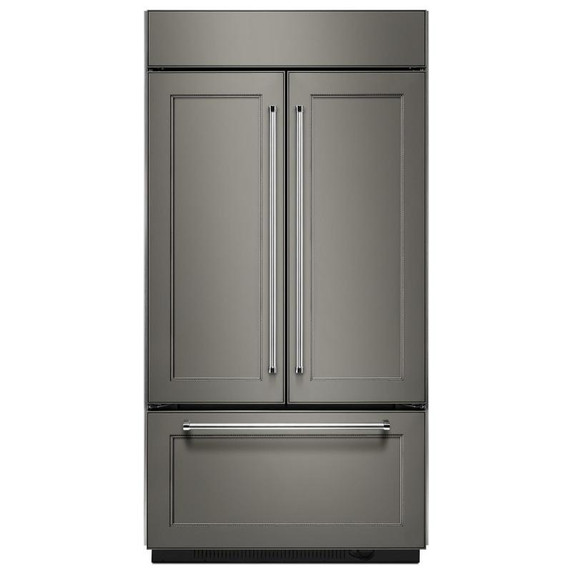

Panel-ReadyAllows the refrigerator to be customized to match surrounding cabinets with custom panels and handles (not included).
Preserva® Food Care SystemTwo independent cooling systems provide a dedicated refrigeration unit to help keep food fresh longer, and a separate system for frozen food. The FreshFlow™ Air Filter helps minimize odours while the two Produce Preservers help delay over-ripening.
Automatic Ice MakerEnsures that you have a constant supply of ice for entertaining.
Platinum Interior DesignProvides a premium look with silver glossy walls that complement the metallic accents found inside the refrigerator.
SatinGlide® System with Soft-CloseAdd a luxury experience to the crisper drawers. The ball bearing rollers and glides allow effortless in-and-out movement even when fully loaded.
LED LightingIlluminates the inside of the refrigerator and freezer giving for better visibility. Unlike incandescent bulbs, LED lights use less energy, are maintenance-free and never need to be replaced.
Intuitive ControlsIntuitive controls make it easy to precisely adjust the temperature of both the refrigerator and freezer.
Adjustable Spill-Resistant Glass ShelvesAre easy to clean and help prevent messes from spilling over into other parts of the refrigerator. The shelf edges are nano-etched with a finely textured surface that helps contain spills, and lets you use the whole shelf from edge-to-edge.
Fit System GuaranteeEnsures KitchenAid Brand Built-in Refrigerators will replace your existing cabinet cut-out of a standard comparable built-in refrigerator model that is 36", 42" or 48" inch wide or KitchenAid will provide up to $300 for a professional to adjust your cabinets.
Country Of OriginUSA
Fingerprint ResistantNo
Extended Service Plan ParentEW13IW1Y
Required AccessoriesEDR3RXD1B
Product To Product PairsKTTS505EPA
Optional AccessoriesW10782871, EDR3RXD1B
Volts120
Amps15
ULYes
Energy Star QualifiedYes
Cee TierTier I
ADA CompliantNo
Energy Rating Kwh Year633
Control LocationInterior Up Front
Control TypeElectronic
Door Ajar Open AlarmYes
Control LockoutN/A
Max Cool Fast CoolYes
Sabbath ModeYes
Water Filter Indicator ResetYes
Door FinishSmooth
Door StyleFlat
Handle MaterialMetal
Hidden HingeYes
Handle ColorStainless Steel
Base Grille ColorBlack
Cabinet ColorGrey
Cabinet FinishSmooth
Number Of Doors3
Reversible DoorN/A
LightLED
Freezer Drawer Basket1 Full Width Lower Metal; 1 Half Width Upper Plastic
Installation ConfigurationBuilt-in
Cooling TypeDual Evaporator
Counter DepthYes
Dispenser TypeN/A
Fresh Flow Air Filter IncludedYes
Produce PreserverYes
Water Filter LocationExterior
Water Filter Part NumberEDR3RXD1
IcemakerYes
Kad RefrigeratorPreserva Food Care System; Platinum Interior; Adjustable Spill Resistant Glass Shelves; Intuitive Controls; LED Lighting; SatinGlide® Cripsers with Soft-Close; Automatic Ice Maker
LightingLED
Number Of Interior Shelves4
Shelf SupportsCantilever
Spill Proof Glass ShelvesYes
Non Climate Control Drawers4 Half Width
Door Bins4 Adjustable Half-Width; 2 Dairy; 2 Half-Width Gallon
Type Of RefrigeratorFrench Door
Refrigerator Volume Cu Ft17.75
Freezer Volume Cu Ft6.42
Total Volume Cu Ft24.17
Carton Depth31.5"
Carton Height86"
Carton Width44.5"
Depth Closed Excluding Handles25.13"
Depth Closed Including Handles27.75"
Depth With Door Open 90 Degree44.25"
Depth27.75"
Gross Weight595 Kg.
Height83.38"
Net Weight570.0 Kg.
Width42.25"

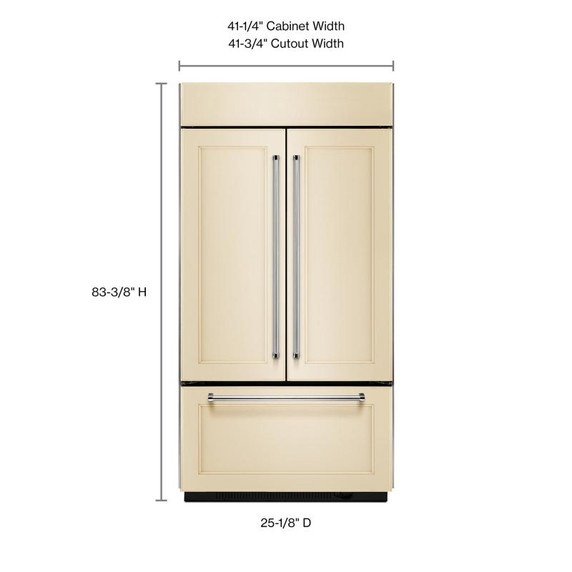

Cabinet Width41.25"
Cutout Depth24.0"
Cutout Height83.5"
Cutout Width41.5"
Depth Excluding Doors23.38"
Height To Top Of Cabinet83.38"
Popular Height71 Inch Tall or Higher
Popular WidthGreater than 42 Inch Wide
