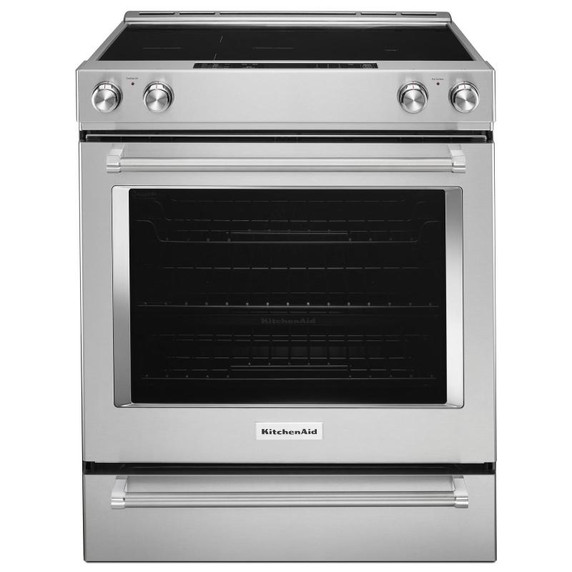

This versatile electric range provides a Baking Drawer that adds more options to the oven. The separate compartment allows you to bake at a different temperature. This range also features Even-Heat™ True Convection, helping you achieve flawless cooking results. The unique bow-tie design and convection fan ensure the entire oven isheated to, and stays at, the perfect temperature.
Features
Top 3 Features

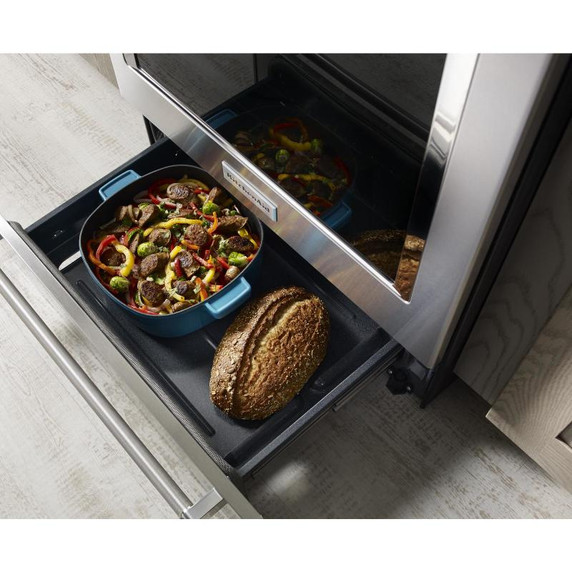

Baking drawerAdds more cooking options to the oven. The separate compartment allows you to keep warm, slow cook or bake at a different temperature and keep dishes
Even-Heat™ True ConvectionProduces flawless results. The unique bow-tie design and convection fan ensure the inside of the entire oven is heated to, and stays at, the perfect temperature.
Steam RackOffers the ability to provide additional moisture to the inside of the oven, enhancing cooking results.
Additional Features
7.1 cu ft total capacityThis electric freestanding range provides an extra-large cooking capacity in the oven for multiple dishes at once and gives you the flexibility of a separate temperature zone in the baking drawer.
5 cooking elements including a warm zoneProvides five independent cooking surfaces that allow you to do more on your range. It features a triple cooking zone of 6, 9 and 12 inches, one 10 inch zone and two 6 inch cooking zones, plus a dedicated warming zone.
EasyConvect™ Conversion SystemTakes guesswork out of convection cooking by ensuring you can get exceptional results when experimenting with new or familiar recipes.
FIT GuaranteeIs our promise to flawlessly fit slide-in ranges designed for an existing cutout of 30" width, countertop depth of 24"-25", cabinet depth of 23"-24" and countertop height of 36".
Aqualift®Cleans your oven in less than an hour without odours and at a temperature below 200°F. This innovative system combines low heat with water to release baked-on spills.
Glass Touch ControlsOffer an intuitive, easy-to-use touch screen experience.
Side Trim Accessory KitThis optional accessory kit will cover damaged countertops and unfinished edges from an old slide- in range to make them beautiful again. Trim pieces come in black, white and stainless to seamlessly match your new range.
Specifications
Controls
Knob ColorStainless Steel
Electronic Display TypeDigital
Configuration and Overview
Energy
Annual Energy Usage Kwh560
Specifications
Extended Service Plan ParentEW08IW1Y, EW08IW2Y, EW08IW4Y
Product To Product PairsKVUB400GSS, KVUB600DSS, KVWB400DSS, KVWB600DSS, KVWB600HBS, UVL5430JSS
Optional AccessoriesW10115773, W10285447, W10655448, W10655449, W10655450, W10675026, W10675027, W10675028, W10731887
Features
Heating Element On Indicator LightYes
Automatic Convection Conversion Temperature AdjustYes
Hot Surface Indicator LightYes
Power Outage CompatibleNo
Certifications
Energy Rating Kwh Year560
Exterior
Handle ColorStainless Steel
Configuration
Oven ConfigurationSingle Oven
Range ConfigurationSlide-In
Details
Broiler LocationTop of Oven
Convection FunctionsBake; Broil; Roast
Oven Cooking SystemConvection
Oven Light TypeIncandescent
Convection Element TypeFan
Cooktop Surface MaterialCeramic Glass
Oven Control TypeElectronic Touch
Broiler Element Power4000W

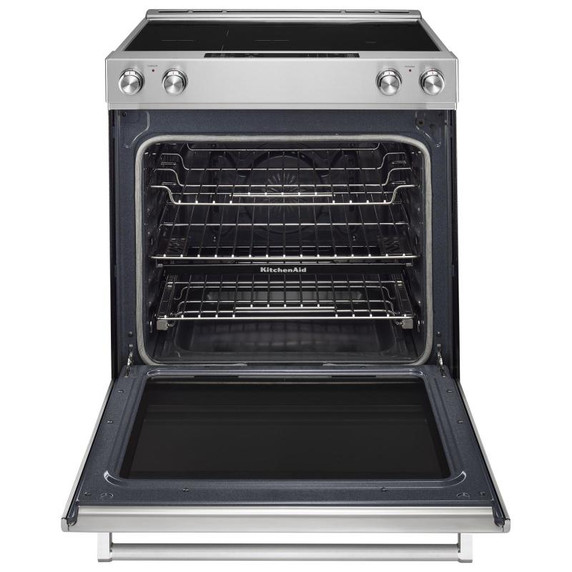

Oven Rack Type1 Max Capacity, 1 Gliding Roll-Out, 1 Steam Rack
Convection Element Power Watts3200
Oven Cleaning TypeAquaLift® Self-Clean
Cooktop Details
Cooktop Control LocationFront
Cooktop Surface ColorBlack
Cooktop Element StyleCeran
Left Rear Element Burner Size6in.
Right Rear Element Burner Power1200W
Right Rear Element Burner Size6in.
Right Rear Element Burner TypeStandard
Number Of Cooking Element Burners5
Center Rear Element Burner Power100W
Center Rear Element Burner TypeWarming
Left Front Element Burner Size12in./9in./6in.
Left Front Element Burner TypeTriple
Right Front Element Burner Power3200W
Right Front Element Burner Size10in.
Right Front Element Burner TypeHigh Output
Left Rear Element Burner TypeHigh Output
Left Front Element Burner Power3000W/1950W/1050W
Left Rear Element Burner Power1300W

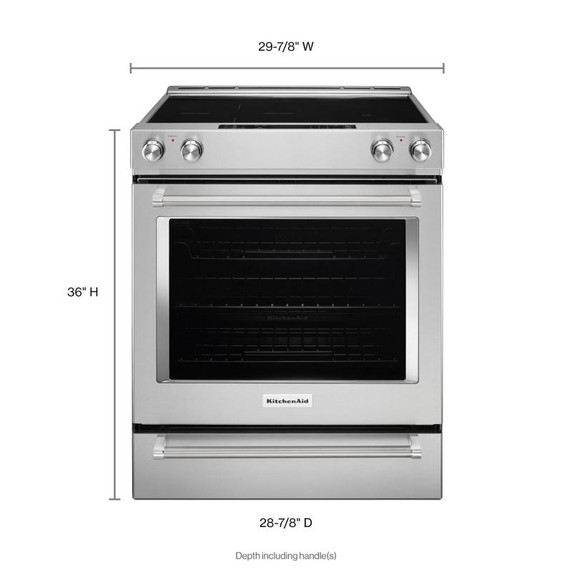

Dimensions
Depth Closed Excluding Handles26.38"
Depth Closed Including Handles28.88"
Capacity FT3 (cubic feet)7.1
