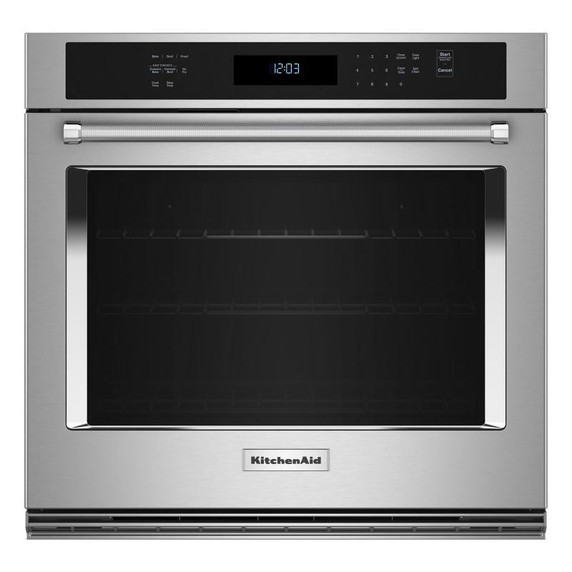

KitchenAid® 30" Single Wall Oven with Air Fry Mode KOES530PPS
Air Fry ModeUses triple heating elements and a fan to circulate hot air around the included air fry basket, crisping and browning food with less oil.*
*When compared to deep frying.
Dishwasher-Safe Air Fry BasketAllows air to circulate around food as it cooks for crisping and browning and is dishwasher-safe for easy cleanup.

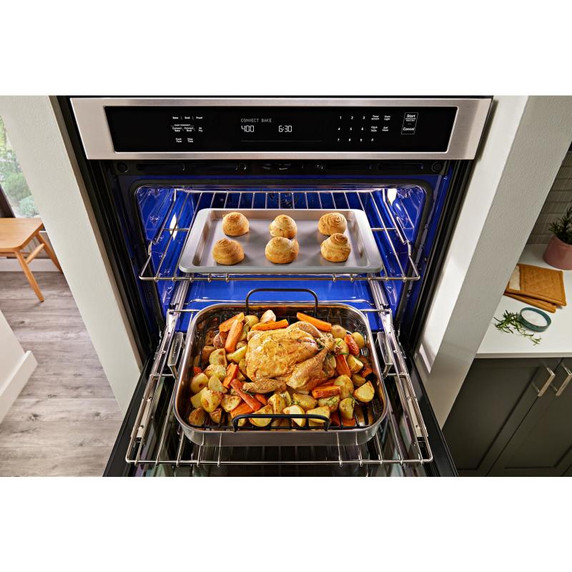

Even-Heat™ True ConvectionFeatures a unique bow-tie design with heating element and fan that circulates hot air throughout the entire oven, providing optimal temperatures for delicious baked goods, juicy roasts and flavorful vegetables.
Integrated Meat ThermometerTakes the guesswork out of roasting meat just the way you like, from rare to well done. It continuously monitors cooking progress and automatically turns the oven off when your desired temperature is reached.
4,000-Watt Broil ElementUses high heat to give foods a crispy, golden brown finish. Use Broil to sear meat, grill fish, char vegetables, toast bread, melt cheesy toppings and more.

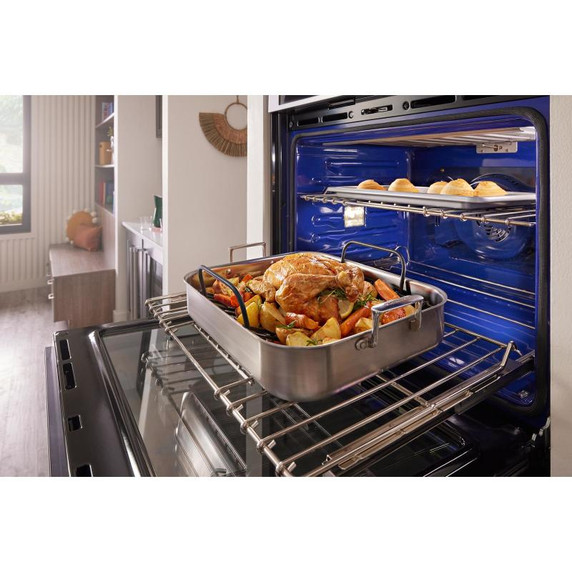

SatinGlide™ Roll-Out Extension RackMakes it easy to cook with large or heavy bakeware. Sure-grip handle and smooth roll-out simplify loading and unloading.
Star-K CertifiedTo meet kosher requirements for use on the Jewish Sabbath and other religious holidays. When in Sabbath Mode, the oven remains in baking mode at a constant temperature with lights, displays and tones disabled.
FIT System Limited GuaranteeAllows the oven to install in standard, short or tall cabinet cutouts, using flexible design elements to match the height of an existing cutout.*
*On 27" and 30" KitchenAid® wall ovens. Excludes new cabinet installations. Offer valid for qualified models of a compatible width and dates specified.
PrintShield™ FinishResists smudges and fingerprints. The specialized coating for stainless steel is easy to clean with just water and a soft cloth, so you can spend more time cooking and less time cleaning up.
EasyConvect™ Conversion SystemAutomatically adjusts conventional baking temperatures and cook times to their convection equivalents, making it easy to use convection with recipes of all kinds.
Even-Heat™ PreheatRaises the oven temperature an extra 40°F during preheating to maintain the set temperature when the oven door is opened and food is added. This also ensures the entire oven cavity, including walls and racks, is fully heated to help prevent cold spots.

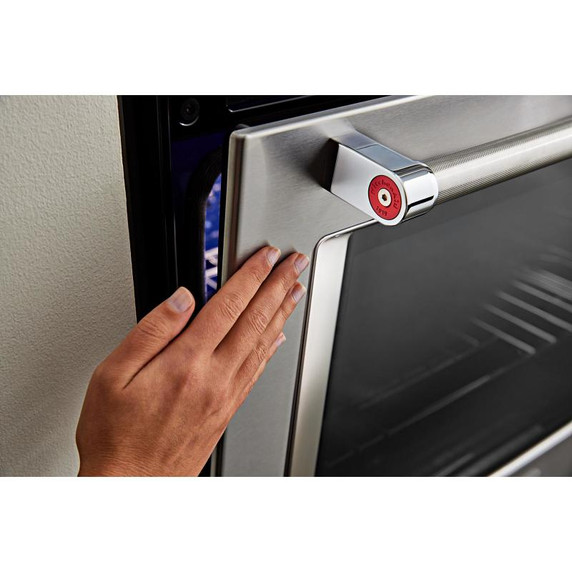

Self-Close DoorFeatures specialized hinges that make it easy to shut the oven when your hands are full. Just give the door a nudge, and it will gently close itself.
Self-Cleaning CycleUses high temperatures to loosen baked-on food without the need for chemical cleaners. After running this cycle, give the inside of the oven a wipe down with a damp cloth.
5.0 Cu. Ft. Oven CapacityProvides room to cook multiple dishes, so you can cook a whole turkey or roast and sides all at once.
What's in the boxSingle Wall Oven includes
- Dishwasher-Safe Air Fry Basket
- Integrated Meat Thermometer

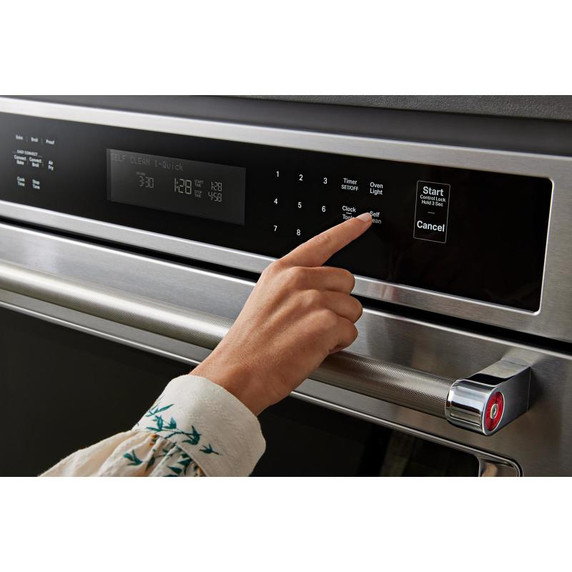

Controls
Control TypeElectronic
Display ColorWhite
Electrical
Hz60
Amps20
Volts240
Power Cord IncludedNo
Configuration and Overview
Fuel TypeElectric
Compatibility
ConnectivityApp; Remote Access; Voice Controlled; WiFi
Energy
Annual Energy Usage Kwh356
Specifications
Country Of OriginUSA
Product To Product Pairs
Extended Service Plan ParentEW10IW4Y, EW10IW2Y, EW10IW1Y
Optional AccessoriesW11594553, W11570325
Features
Language ConversionEnglish/French/Spanish
Power On Indicator LightYes
Certifications
ULYes
Energy Rating Kwh Year356
CULYes
Exterior
Handle ColorStainless Steel
Handle MaterialStainless Steel
Configuration
Oven ConfigurationSingle Oven
Description
Size In30
Details
Hidden Bake ElementYes
Oven Cleaning TypeSelf-Clean
Bake Element Power2800W
Number Of Oven Lights2
Number Of Rack Guides6
Oven Interior Depth In Inches19.0
Oven Interior Width In Inches25.0
Interior CoatingPorcelain
Light ControlOven Light Touch Pad
Number Of Broil Elements1
Oven Interior Height In Inches18.0
Light TypeHalogen
Interior ColorBlue
Broiler Element Power4000W
Convection FunctionsBake; Broil; Convection Conversion
Number Of Oven Racks3
Number Of Bake Elements2
Convection Element Power Watts3200
Carton Depth30.8"
Carton Height30.7"
Carton Width34.8"
Depth Closed Excluding Handles24.5"
Depth Closed Including Handles27.13"
Depth With Door Open 90 Degree46.75"
Depth27.13"
Gross Weight161.0 lbs.
Height28.75"
Net Weight143.0 lbs.
Width29.75"
Cutout Depth24.0"
Cutout Height28.0"
Cutout Width28.5"
Capacity FT3 (cubic feet)5.0
